Finnmark FD-5 Trinity XL Infrared & Steam Sauna Combo - 75"W x 64"D x 83"H

The Trinity Combination Sauna is the only sauna available that combines Finnmark’s UL-listed Spectrum Plus infrared heaters with a traditional sauna heater that uses vulcanite sauna stones to radiate even heat and allow you to splash a ladle of water onto the rocks for steam. True medical-grade Spectrum Red Light™ Therapy rounds out this multi-dimensional home wellness system.

Don’t compromise! Finnmark’s FD-5 Trinity is the only combination sauna with true UL-listed infrared heater panels together with a traditional sauna heater. Get all the benefits of infrared combined with traditional rocks and steam.

Get hot fast! The only IR heaters that have passed the rigorous tests from Underwriter Laboratories, used in tandem with a traditional steam sauna stove. Short-wave far-infrared penetrates muscles and joints, making you sweat 25 times more than carbon panel heaters.

The traditional 240V/1PH 4.5kW sauna heater lets you splash water onto the rocks for a luxurious steam sauna experience, offering benefits and intensity only provided by a steam sauna.

Red light therapy is a type of phototherapy that uses low-level light wavelengths to penetrate the skin and stimulate collagen production, leading to numerous potential health benefits. It’s a perfect enhancement to your sauna wellness ritual.

Features

• Spectrum Plus™ UL-listed short-wave infrared heaters for deep penetrating heat—up to 25x more than standard carbon panel heaters.
• Spectrum Red Light™ Therapy: 192-diode medical-grade LED panel producing 650nm of red light therapy combined with chromotherapy.
• Antimicrobial Western Canadian cedar interior protects against mold, bacteria, and fungus.

• Thermal Plus™ Aspen exterior that will never rot, warp, decay, or chip, making Finnmark Designs' full-spectrum infrared saunas one of the healthiest and longest-lasting saunas on the market.
• 3-IN-ONE Combination: Infrared + Traditional Steam + Medical-Grade Red Light Therapy.

• Built-in LCD touchscreen controller with Bluetooth audio.

• Audio system with 6" HiFi marine-grade speakers.

• 8mm tempered glass for ultimate thermal retention.

• Extra-large two-tier bench system.
• Low EMF sauna tested by a NASA award-winning testing facility.
• High Emissivity infrared heaters.

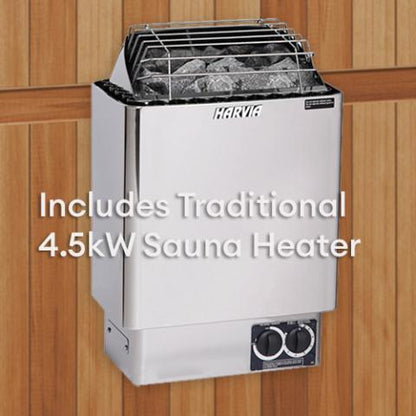

Harvia KIP Series B 4.5KW Sauna Heater

• Wall-mounted stainless steel design.
• 4.5kW power output.

• Designed for sauna rooms from 100 to 210 cu. ft.
• Requires a minimum of 50 lbs of sauna stones (1 Box-AC3000).
• Built-in controls with ergonomic operating switches.

• Available in 240V/1PH or 208V/3PH operation.
• Industrial-grade, serviceable heating elements.

• Exceptionally large rock capacity.
• UL listed
• Direct rock-to-heating element contact.

• Designed, engineered, and made in Finland.
• Dimensions: 16"W x 11"D x 24"H.

• 2-Year Warranty (Consumer Use).

Includes

• Bottom Panel
• Top Panel

• Back Panel
• Front Panel
• Left Panel

• Right Panel
• Glass Door
• Bench Support

• Bench Top
• Heater Cable

• Floor Cable
• Screws

• Power Supply Unit
• Power Cable

• Interior Heater Connections with Wood Cover

• Door Handle (2 Screws)

• Infrared Sauna Heater Panels
• Harvia KIP Series B 4.5kW Sauna Heater

• 1 Box of Harvia AC3000 sauna stones (44 lbs)

• Medical-Grade LED Red Light Therapy at 650nm plus color chromotherapy
• V2 LCD Controller 5" Touchscreen with Bluetooth
• ETL Certification
• Limited Warranty

Specifications

• Model: FD-5
• External Materials: Thermo-Aspen

• Interior Materials: Western Canadian Cedar
• Voltage: 240V

• IR Watts: 2700W

• Amperage: 15 | TBD

• Plug Type: NEMA 6-15

• Maximum Temperature: IR 170°F | Traditional 190°F

• Interior Dimensions: 71"W x 57.5"D x 75.5"H
• Exterior Dimensions: 75"W x 64"D x 83"H

• Room Volume: 130 cu. ft.
• Door Dimensions: 23.625"W x 68.875"H

• Door Handle Dimensions: 1.5"W x 13.25"H
• Glass Thickness: 8mm with Gasket

• Product Weight: 575 lbs

• Shipping Dimensions: 36"W x 80"D
• Shipping Weight: 654 lbs with 48 lb Pallet

Harvia KIP Series B 4.5kW Heater Specifications

• Model: KIP45B
• Kilowatt Rating: 4.5kW
• Primary Fuel: Electric
• Minimum Adjusted Cubic Feet: 100 cu. ft.
• Maximum Adjusted Cubic Feet: 210 cu. ft.
• Voltage: 240V
• Phase: 1PH

• Amperage: 18.8A

• Heater Weight: 40 lbs
• Shipping Weight (With Sauna Stones): 84 lbs
• Dimensions: 16"W x 11"D x 24"H
